Titanium Equipment for the Pulp & Paper Industry

Bleach plants depend on machinery with superior corrosion resistance and temperature control. TiFab specializes in titanium equipment for the pulp and paper industry designed to handle these requirements. Plus, we have a titanium CNC machine shop and field welders, so you don’t have to adapt your shop to perform these services yourself.

Titanium Equipment for Pulp & Paper

Titanium is compatible with the corrosive chemicals used in various stages of the pulp bleaching process, such as chlorine dioxide, hydrogen peroxide, and sodium hypochlorite.

Materials

TiFab has a full inventory of the following materials ready to help for your next outage, including:

Seamless Pipe from 1/2" to 6" dia
Welded Pipe 8" to 72" dia
Fittings in all of the above sizes (stubends, slip-on flanges, elbows, tees, reducers)
Titanium Grade 2, 12, 7 plate (ASTM B265)

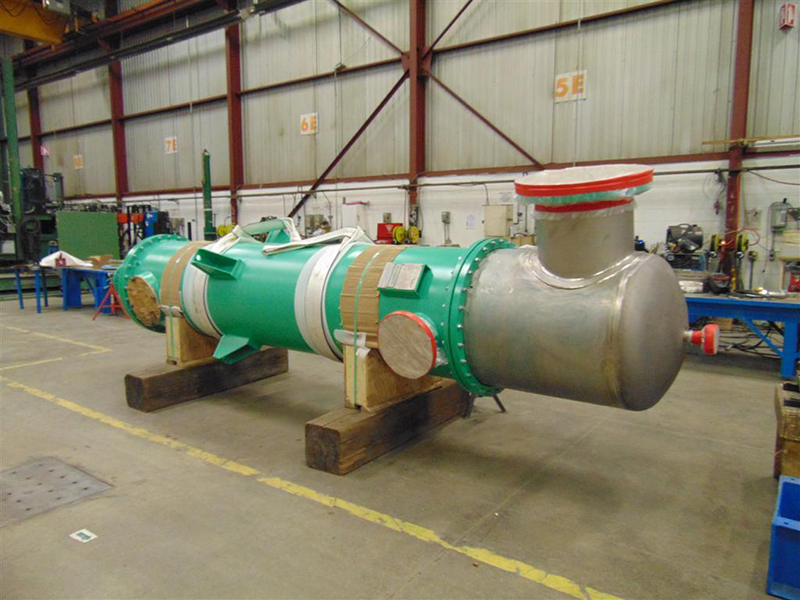

Titanium Grade 2 and 7 tube for heat exchangers (3/4" to 1.5" OD)

Benefits

Our titanium equipment for the pulp industry has numerous benefits particularly to bleach plants:

Corrosion Resistance: Tolerates corrosive conditions and materials without degrading over time, including chlorine compounds, acids, and alkalis
Temperature Resistance: Maintains mechanical properties and integrity at elevated temperatures in digesters, bleaching stages, and drying processes
Mechanical Strength and Durability: Offers high strength and durability over prolonged periods to minimize repair and replacement costs
Cost-effectiveness: Outperforms stainless steel, despite higher upfront costs, and can remain in service for decades in the harshest environments
Customization and Adaptability: Easily fits into existing infrastructure with our design and customization options that meet specific operational parameters. You can eliminate lined pipe and lined equipment and the maintenance headaches that come with those materials.

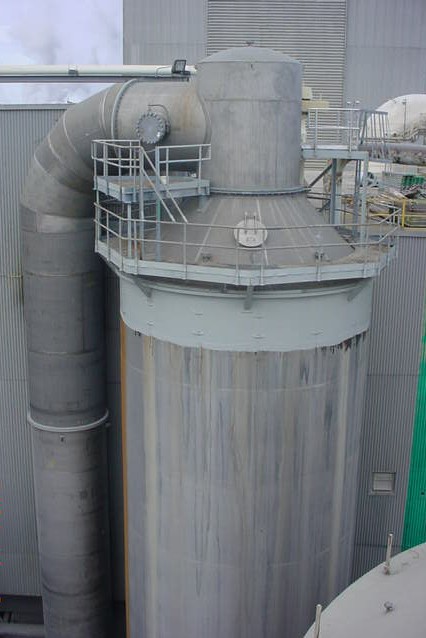

Our cone fabrication at the top of the bleach tower is a proprietary 3-flange design which is connects the cone in 120 or 180 degree sections. Most cone fabrications go from the 7 to 9 ft inlet to a 18 to 22 ft outlet (same ID as the bleach tower) with no welding required at site.
